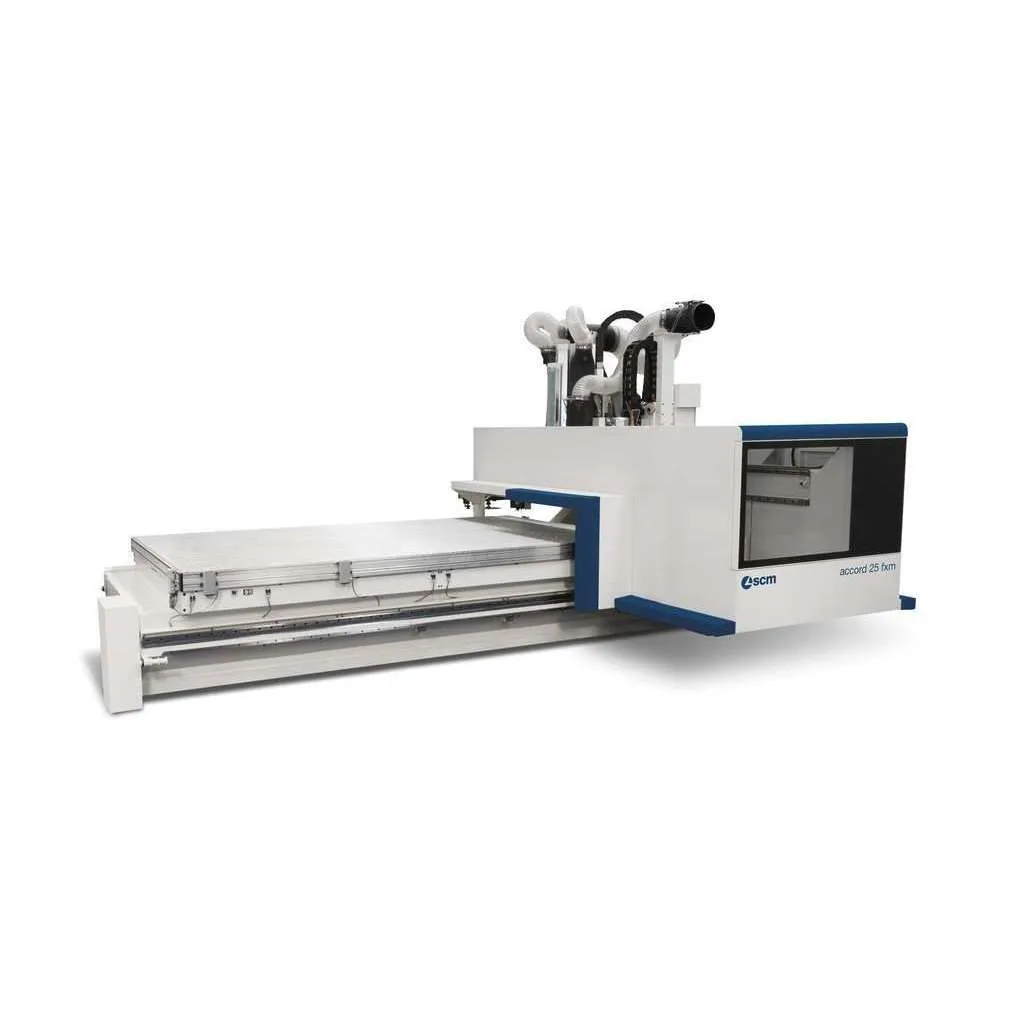

CNC machining centre for highly flexible productions requiring superior precision and finish quality regardless of component shape and dimensions.
Ideal solution for routing and drilling operations on solid wood components and panels of plastic, composites, resins and light alloys also with nesting technology.

Advantages

Name: Accord 25 FXM
SKU: 148342

HEAVY DUTY PROFILING

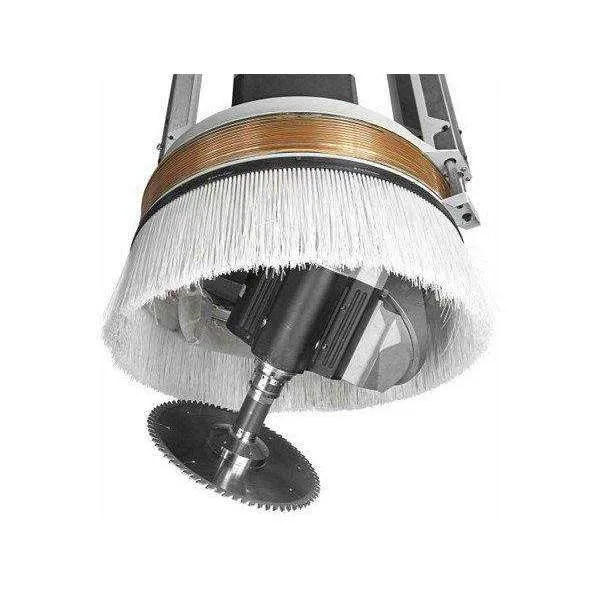

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

RELIABLE TECHNOLOGY

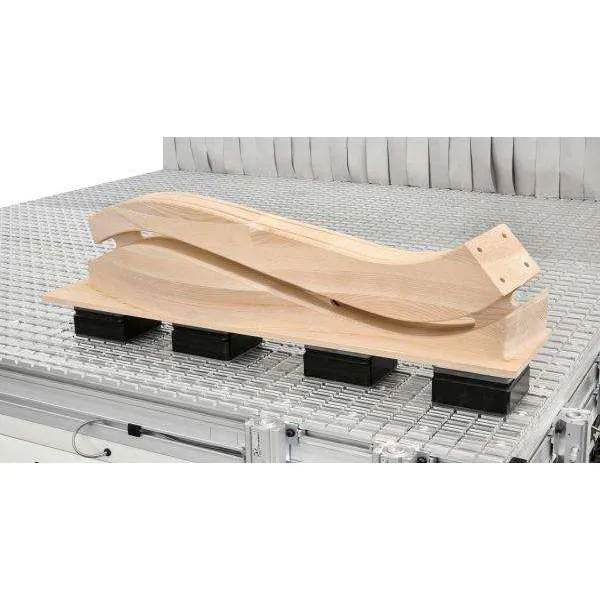

The SCM aluminium multi-function worktable guarantees perfect lasting planarity.
The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.

PERFECT FINISH QUALITY
The architecture with fixed table and mobile gantry structure, consisting of a sturdy construction equipped with front and rear sliding guides, ensures maximum accuracy and finish quality over the entire work area.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.

Technical data

Accord 25 FXM
Working areas
X-Y-Z axes dimensions	mm	3650x1320x250 4970x1320x250 6170x1320x250 3650x1600x250 4970x1600x250 6170x1600x250 3650x2120x250 4970x2120x250 6170x2120x250
Axes
X-Y-Z axes max. speed	m/min	60-60-30
Machining head
5 axes electrospindle motor power (max.)	kW	12
3/4 axes electrospindle motor power (max.)	kW	15
5 axes electrospindle rotation speed (max.)	rpm	24000
3/4 axes electrospindle rotation speed (max.)	rpm	24000
Drilling unit
Vertical and horizontal spindles (max.)	n.	30
Rotation speed	rpm	8000
