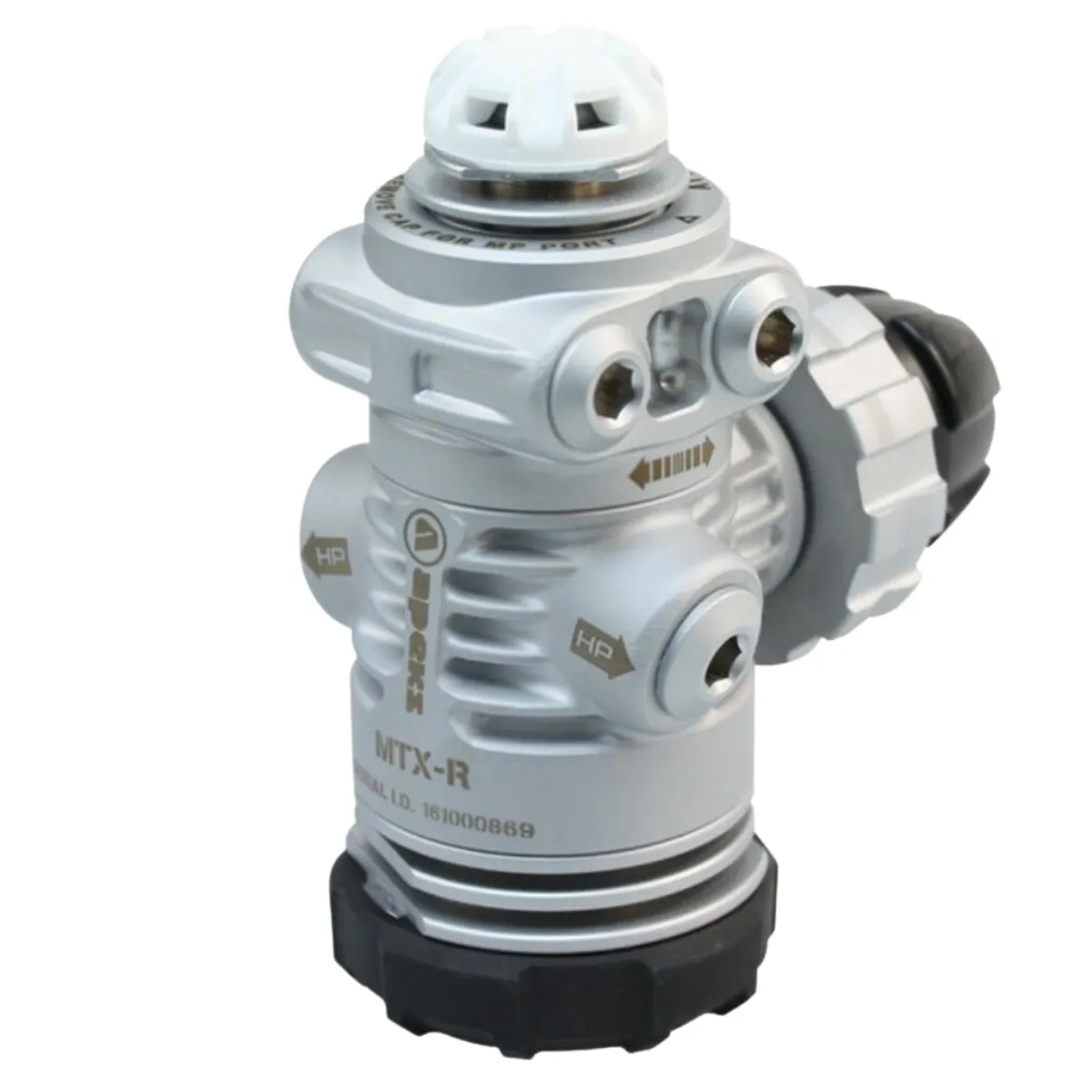

the MTX-R is reliable, rugged and expedition ready. With an innovative first stage design that helps to prevent ice build up around the diaphragm. With Superb protection from impact damage on both the 1st and 2nd stage
| Connections | Yoke and DIN available |
| Type of first stage | Over-balanced diaphragm design, environmentally sealed |
| Body Type | One piece forged body |
| Number of HP ports | 2 (7/16" UNF) |
| Number of MP ports | 5 (3/8" UNF) |
| Environmental Dry Kit | Standard |
| First stage exterior | Satin chrome |
| Orientation | Convertible LH or RH |
| Coldwater Use | Yes - extreme |
- A first of its kind, over-moulded first-stage end cap and environmental diaphragm to prevent ice build-up that could cause a free flow in extreme circumstances.
- Forged 1st stage body gives maximum thermal performance.
- Ribbed diaphragm clamp on the 1st stage ensures improved heat exchange in cold water conditions.
- Angled HP ports allow for optimal hose routing and transmitter fitting.
- Parallel turret ports allow for improved hose orientation.
- Superb protection from impact damage on both the 1st and 2nd stage.
